Quick Answer
UNC stands for Unified National Coarse, a type of thread standard characterized by a coarse pitch used primarily in fasteners. It is part of the Unified Thread Standard (UTS) and is favored for applications requiring quick assembly and resistance to loosening under vibration.
Infobox: Unified National Coarse (UNC) Threads
| Term | Unified National Coarse (UNC) |
|---|---|
| Thread Standard | Unified Thread Standard (UTS) |
| Thread Angle | 60 degrees |
| Pitch Range | 4 to 32 threads per inch (TPI) |
| Common Uses | Fast assembly, vibration resistance |
| Comparison | Coarser than UNF (Unified National Fine) and UNEF (Unified National Extra Fine) |
| Material Considerations | Requires attention to material hardness and torque application |
Overview of UNC Threads
The term UNC refers to a specific category within the Unified Thread Standard, which governs the design and dimensions of screw threads in the United States. UNC threads feature a relatively coarse pitch, meaning the distance between adjacent threads is larger compared to fine-thread variants. This design facilitates faster assembly and disassembly, making UNC threads ideal for applications where speed and ease of use are priorities.
These threads maintain a consistent 60-degree thread angle across all sizes, ensuring compatibility and interchangeability. The pitch varies depending on the diameter of the fastener, ranging from 4 threads per inch for larger bolts to 32 threads per inch for smaller ones. This range allows engineers to select the most suitable thread size for their specific mechanical requirements.
Why UNC Threads Matter
UNC threads are widely used in engineering and manufacturing due to their robustness and reliability. Their coarse pitch provides a larger thread surface area, which enhances grip and resistance to loosening, especially in environments subject to vibration or dynamic loads. This makes UNC fasteners particularly valuable in automotive, aerospace, and heavy machinery applications where secure fastening is critical.
Moreover, the ease of assembly and disassembly with UNC threads reduces maintenance time and costs, contributing to operational efficiency. Understanding the properties and appropriate use of UNC threads helps engineers design safer and more durable mechanical systems.
Common Misunderstandings About UNC Threads
One frequent misconception is that finer threads are always superior due to their higher tensile strength. While fine threads (UNF and UNEF) do offer better resistance to loosening in some cases, they are not always the best choice for harsh or high-vibration environments where coarse UNC threads excel.
Another misunderstanding is that thread pitch alone determines strength. In reality, material properties, thread engagement length, and proper torque application are equally important factors influencing the performance of a threaded connection.
Material and Torque Considerations
The interaction between UNC threads and the materials they fasten is critical. Softer materials, such as aluminum or plastic, are more prone to thread stripping if excessive torque is applied. Conversely, harder materials can withstand higher torque but may require lubrication to prevent galling.
Applying the correct torque is essential to maintain the integrity of the joint. Over-tightening can damage threads, while under-tightening may lead to loosening and failure. Engineers must consider the mechanical properties of both the fastener and the mating material to optimize performance.
Comparison with Other Unified Thread Types

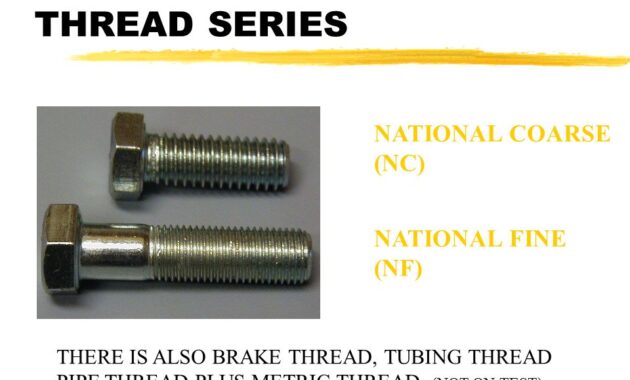

UNC threads are part of a family that includes Unified National Fine (UNF) and Unified National Extra Fine (UNEF) threads. UNF threads have a finer pitch, providing more threads per inch, which can improve tensile strength and resistance to loosening in some applications. UNEF threads are even finer and are used in specialized applications requiring precise adjustments.
The choice between UNC and finer threads depends on the specific application requirements, including load conditions, environmental factors, and assembly speed.
Example Application
Consider an automotive engine assembly where components are subject to constant vibration and thermal cycling. Using UNC fasteners in this context ensures that bolts remain securely tightened over time, reducing the risk of loosening and mechanical failure. The coarse threads provide a strong grip and allow for quicker maintenance compared to fine-thread alternatives.
Related Terms
- Unified Thread Standard (UTS): The overarching standard that includes UNC, UNF, and UNEF thread types.
- Thread Pitch: The distance between adjacent threads, measured in threads per inch (TPI).
- Thread Angle: The angle formed between the flanks of the thread, standardized at 60 degrees for UTS threads.
- Torque: The rotational force applied to fasten or loosen a threaded component.
- Thread Stripping: Damage caused by excessive torque or incompatible materials leading to loss of thread engagement.
Frequently Asked Questions (FAQ)
- What does UNC stand for?
- UNC stands for Unified National Coarse, a thread type within the Unified Thread Standard characterized by a coarse pitch.
- When should I use UNC threads instead of UNF?
- Use UNC threads when faster assembly, better resistance to vibration, and stronger grip in softer materials are required. UNF threads are preferable for finer adjustments and higher tensile strength needs.
- What is the standard thread angle for UNC threads?
- The thread angle for UNC threads is 60 degrees.
- Can UNC threads be used with all materials?
- While UNC threads can be used with many materials, care must be taken with softer materials to avoid stripping, and proper torque must be applied to ensure joint integrity.
- How does thread pitch affect fastener performance?
- Coarser pitches (like UNC) provide better resistance to loosening and faster assembly, while finer pitches (like UNF) offer higher tensile strength and finer adjustment capabilities.
Final Answer
Unified National Coarse (UNC) threads are a fundamental component of the Unified Thread Standard, designed with a coarse pitch to facilitate quick assembly and strong resistance to loosening, especially under vibration. Selecting the appropriate thread type, considering material compatibility and torque, is essential for ensuring reliable and durable mechanical connections.
References
- Machinery’s Handbook, 30th Edition, Industrial Press
- ASME B1.1-2019: Unified Inch Screw Threads (UN and UNR Thread Form)
- Shigley’s Mechanical Engineering Design, 11th Edition, McGraw-Hill Education
- “Thread Standards and Specifications,” Engineering Toolbox, engineeringtoolbox.com
