Water Supply Systems for Commercial Buildings: Design and Code Basics

In the narrative of commercial construction, the electrical system is often called the “brain,” and the HVAC is the “respiratory system.” But the true lifeblood of any functional enterprise—whether it’s a twenty-story office tower, a sprawling hospital, or a high-traffic shopping mall—is the water supply system.

Designing a commercial water system is a far more complex story than simply scaling up a residential pipe. It is a balancing act of physics, hygiene, and strict legal compliance. A failure in design doesn’t just mean a leaky faucet; it can mean a catastrophic loss of fire protection, the spread of waterborne pathogens, or a complete building shutdown. Here is the essential guide to the design and code basics of modern commercial water supply.

1. The Anatomy of the Main: From City to Building

The story begins at the municipal water main. Unlike a house, which typically draws from a single 3/4-inch or 1-inch line, a commercial building requires a massive volume of water for both domestic use (toilets, sinks) and fire suppression.

The Dedicated Service Line

Most modern codes require a commercial building to have a “split” service or two separate lines.

• The Domestic Line: Feeds the daily needs of the occupants. It is metered and often treated or filtered at the point of entry.

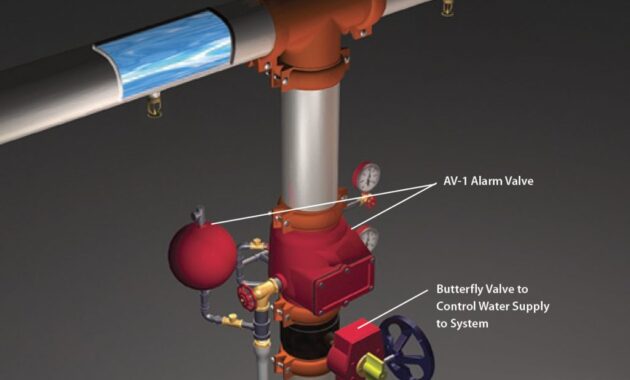

• The Fire Line: A high-capacity, unmetered (or specifically metered) line that feeds the sprinkler system.

The design must account for Peak Demand. Engineers use “Fixture Units” (a mathematical value assigned to different types of plumbing fixtures) to calculate the maximum potential water flow required if, for example, every flush-valve in a stadium was used during a halftime break.

2. Managing Pressure: The Vertical Challenge

Physics is the primary antagonist in high-rise water design. For every foot of elevation, water loses approximately 0.433 psi (pounds per square inch) of pressure. By the time water reaches the 10th floor of a building, the city’s municipal pressure is often insufficient to push it through a showerhead.

The Booster Pump Narrative

To solve this, designers utilize Variable Speed Booster Pumps. These intelligent systems detect a drop in pressure as more faucets are opened and ramp up their motors to maintain a constant, steady flow to the upper floors.

Conversely, for those on the ground floor, the pressure might be dangerously high. In these areas, Pressure Reducing Valves (PRVs) are installed to prevent the high pressure from blowing out seals or damaging delicate fixtures.

3. The Code of Safety: Backflow Prevention

In the world of plumbing codes (specifically the International Plumbing Code or IPC), the “Holy Grail” is the protection of the potable water supply. The greatest fear is Cross-Connection, where contaminated water (from a cooling tower, a boiler, or a fire sprinkler line) is sucked back into the drinking water.

Backflow Preventers

Code mandates that a Reduced Pressure Zone (RPZ) Valve or a Double Check Valve assembly be installed at the building’s point of entry. This device acts as a one-way street. If the city’s water pressure drops suddenly (perhaps due to a nearby fire hydrant being opened), the backflow preventer slams shut, ensuring that the building’s internal water doesn’t siphon back into the public main.

4. The Hot Water Narrative: Efficiency and Circulation

In a large commercial building, a user on the 5th floor shouldn’t have to wait three minutes for hot water to travel from a basement boiler. This is not only a convenience issue but a significant waste of water.

The Recirculation Loop

Commercial codes generally require a Hot Water Recirculation System. A small pump constantly moves hot water through a loop that runs close to every fixture. This ensures that “instant” hot water is always available.

Legionella Mitigation

In 2026, the narrative of hot water design is heavily focused on health. Water stored at lukewarm temperatures (77°F to 113°F) is a breeding ground for Legionella bacteria. Modern codes and ASHRAE Standard 188 dictate that hot water must be stored at a minimum of 140°F (60°C) to kill bacteria, then “tempered” back down to a safe 120°F at the faucet using thermostatic mixing valves to prevent scalding.

5. Material Matters: Choosing the Pipe

The materials used in commercial systems must be durable enough to handle high pressures and resistant to the corrosive nature of treated water.

6. Conservation and Greywater

Sustainability is no longer an “option” in the 2026 commercial building code; it is a requirement. Many jurisdictions now mandate:

• Low-Flow Fixtures: Toilets that use 1.28 gallons per flush (gpf) or less and urinals that use as little as 0.125 gpf.

• Greywater Harvesting: Advanced systems now capture “greywater” (from sinks and showers), treat it, and reuse it for toilet flushing or landscape irrigation. This narrative of “Circular Water” is essential for buildings seeking LEED or WELL certifications.

Conclusion: A System of Resilience

A well-designed water supply system is the silent engine of commercial success. It requires a deep understanding of the International Plumbing Code, a keen eye for energy efficiency, and a commitment to public health. Whether it is managing the massive pressure required for a skyscraper or ensuring the purity of a hospital’s surgical scrub-sink, the plumbing engineer’s work ensures that the building remains a safe, productive environment.

In the end, the best water system is the one the tenants never think about. It is the one that simply works—providing a steady, safe, and efficient flow from the first floor to the penthouse.
