As energy efficiency becomes paramount in the fight against climate change and rising operational costs, commercial buildings are increasingly turning to advanced HVAC (Heating, Ventilation, and Air Conditioning) systems. The choice of an energy-efficient HVAC system can significantly impact a building’s carbon footprint, energy consumption, and overall comfort level. In this article, we delve into different types of energy-efficient HVAC systems, comparing their features, benefits, and suitability for commercial applications.
1. Variable Refrigerant Flow (VRF) Systems
Variable Refrigerant Flow (VRF) technology has gained traction in commercial settings over the past decade. These systems use a single outdoor unit connected to multiple indoor units, allowing for precise temperature control in various zones. The hallmark of VRF systems is their ability to vary the refrigerant flow to meet the specific cooling or heating demands of each space.
One of the primary advantages of VRF systems is their commendable energy efficiency, often achieving efficiencies greater than 20 SEER (Seasonal Energy Efficiency Ratio). Their inverter-driven compressors adjust the speed based on cooling requirements, which reduces energy consumption significantly. Additionally, paired with heat recovery capabilities, VRF systems can transfer excess heat from one area to another, maximizing energy use and reducing waste.
Nevertheless, installation costs can be higher than conventional systems, making initial investment a crucial consideration for business owners.
2. Chilled Beam Systems
Chilled beam systems represent an innovative strategy for temperature control in commercial buildings. These systems leverage convection and conduction principles, using chilled water to cool the beams. Instead of relying heavily on mechanical components, chilled beam systems utilize natural circulation to maintain indoor temperatures.
One of the remarkable benefits of chilled beam systems is their capacity for significant energy savings. By relying more on water for cooling rather than air, businesses can reduce fan energy costs and achieve a quieter indoor environment. These systems operate optimally in buildings with high sensible heat loads, such as laboratories or data centers.
However, chilled beams require a well-designed ventilation system to handle latent heat and maintain acceptable humidity levels. They are also best suited for new construction or extensive renovations, making retrofitting a challenge.
3. Geothermal Heat Pumps
Geothermal heat pumps (GHPs) tap into the Earth’s stable underground temperature to provide sustainable heating and cooling solutions for commercial buildings. By transferring heat to and from the ground, GHPs operate with impressive efficiency and minimal operational costs.
The subterranean temperature remains relatively constant throughout the year, lending GHPs enviable performance, often delivering efficiencies exceeding 400%. Furthermore, the longevity of geothermal systems is notable; their underground loops can last over 50 years with minimal maintenance requirements.
Despite their formidable benefits, the primary drawback comes in the form of substantial upfront costs and site-specific installation challenges. Buildings in urban areas may face restrictions on ground excavation, making this option less viable in some locations.

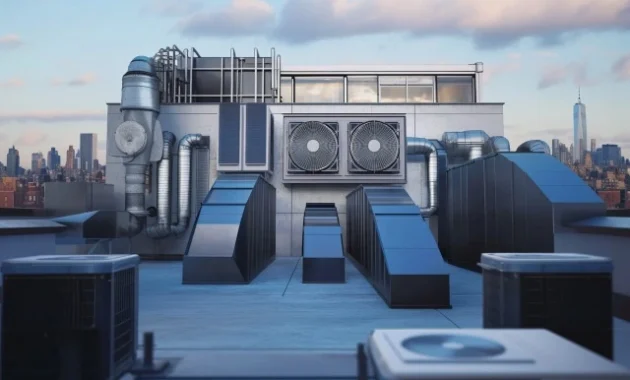

4. Packaged Rooftop Units (RTUs) with Economizers
Packaged Rooftop Units (RTUs) are a prevalent choice in commercial HVAC applications, particularly for mid-sized buildings. These units bundle all necessary components in a single package installed on the roof, saving valuable indoor space. RTUs equipped with economizers enhance energy efficiency by utilizing outdoor air for cooling when conditions permit, reducing reliance on mechanical cooling systems.
Economizers can significantly decrease energy consumption, particularly in cooler climates. By automatically adjusting the intake of outdoor air based on temperature and humidity, these systems optimize performance and extend the life of the HVAC system. Furthermore, their ease of access for maintenance makes them a practical choice for many commercial properties.
Challenges may arise from fixed ductwork, limiting flexibility in space utilization and making retrofitting more complex in existing buildings.
5. Hybrid HVAC Systems
Hybrid systems exemplify a blend of technologies, leveraging both traditional and renewable energy sources to maximize efficiency. These systems can intelligently switch between a fossil fuel-based heating source and an electric heat pump, depending on the prevailing conditions and fuel prices.
One key selling point of hybrid HVAC systems is their adaptability to climate variations, providing optimal comfort while minimizing energy expenditure. The integration of smart controls makes it possible to monitor and adjust energy usage dynamically, which can yield substantial savings in utility costs.
Nonetheless, hybrid systems may require more extensive initial setups and proper balancing of components to achieve optimal efficiency, demanding careful planning and execution.
6. Advanced Building Management Systems (BMS)
Regardless of the HVAC system chosen, incorporating an Advanced Building Management System (BMS) is vital for attaining peak energy efficiency. A BMS enables facility managers to monitor and control HVAC operations, lighting, and other building systems from a centralized platform.
Utilizing real-time data analytics, a BMS can deliver insights into energy usage patterns, facilitate predictive maintenance, and optimize system performance. Integrating the BMS with renewable energy sources, such as solar panels, can lead to an even more sustainable commercial environment.
However, the initial setup of a comprehensive BMS can be resource-intensive, requiring skilled professionals for installation and ongoing data management.
Conclusion
Choosing the right energy-efficient HVAC system for commercial buildings involves a careful evaluation of various factors, including building size, usage patterns, and budgetary constraints. Understanding the distinctive features and benefits of each system enables business owners to make informed decisions that align with their energy efficiency goals while enhancing overall comfort and operational performance.
